HOSE PROGRAMME - SAND AND GRAVEL

DREDGING PRESSURE HOSE
DREDGING SUCTION HOSE
HIGH-VACUUM DREDGING HOSE
WP - HOSE with and without spiral
Sand and gravel (German)



DREDGING PRESSURE HOSE

For use in floating or fixed pipelines. To handle fine and coarse-grained materials.

Applications: Wet dredging, sand and gravel excavation, water to land transport pipe.

Construction:

  • Highly abrasion-resistant tube
  • Tension and pressure-resistant special fabric inlays
  • UV, ozone and weather-resistant, abrasion-resistant cover
  • Interior and exterior smooth


ND
(mm)		 Wall thickness
(mm) 		WP
(bar) 		Vacuum
(bar) 		Bend. radius
approx. (mm)		 Max. length
(m)
80 10 10 - 800 40
100 15 10 - 1000 40
150 16 10 - 1500 20
200 17 10 - 2000 20
225 17 10 - 2250 10
250 18 10 - 2500 10
300 20 10 - 3000 10
350 21 10 - 3500 5
400 22 10 - 4000 5
500 24 10 - 5000 5

Sections cut to length with cuffed ends and/or widened hose endings or built in flanges.

Other versions and dimensions on request.





DREDGING SUCTION HOSE

For use in floating or fixed pipelines. To handle fine and coarse-grained materials with high vacuum loads.

Applications: Wet dredging, sand and gravel excavation, suction dredging and gravel washing systems.

Construction:

  • Highly abrasion-resistant tube
  • Tension and pressure-resistant special fabric inlays
  • Concealed steel spiral
  • UV, ozone and weather-resistant, abrasion-resistant cover
  • Interior smooth, exterior corrugated


ND
(mm)		 Wall thickness
(mm) 		WP
(bar) 		Vacuum
(bar) 		Bend. radius
approx. (mm)		 Max. length
(m)
100 18 10 0.7 1100 40
150 20 10 0.7 1650 20
200 20 10 0.7 2200 20
225 20 10 0.7 2500 10
250 22 10 0.7 2800 10
275 22 10 0.7 3090 10
300 22 10 0.7 5300 10
350 24 10 0.5 3900 5
400 24 10 0.5 4400 5
500 26 10 0.5 5500 5

Sections cut to length with cuffed ends and/or widened hose endings or built-in flanges.

Suction dredging hoses also available with enhanced vacuum performance for pure suction applications at customer request.

Other versions and dimensions on request.





HIGH-VACUUM DREDGING HOSE

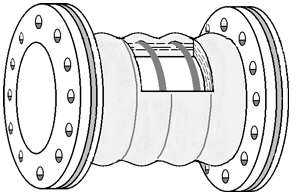

For use as an expansion joint in suction and pressure lines. As a suction hose on suction dredgers with narrow bending radiuses. To handle fine and coarse-grained materials. Also suitable for tough transport applications of dry materials in the mining field.

Construction:

  • Highly abrasion-resistant tube
  • Tension and pressure-resistant special fabric inlays
  • Concealed steel rings
  • UV, ozone and weather-resistant, abrasion-resistant cover
  • Interior smooth, exterior deep corrugated


ND
(mm)		 Wall thickness
(mm) 		WP
(bar) 		Vacuum
(bar) 		Max. length
(m)
200 18 10 0.9 10
250 20 10 0.9 10
300 22 10 0.9 10
400 24 6 0.9 5
500 26 6 0.9 5

Cut to length with built-in flanges.

Other versions and dimensions on request.





WP - HOSE with and without spiral

For use on water pumps and gravel washing systems. To transport water or water-sand mixtures with low sand content in the pressure and vacuum area. Very flexible and inexpensive hose with long service life.

Construction:

  • Abrasion-resistant tube
  • Tension and pressure-resistant fabric inlays
  • Optional: Concealed steel spiral
  • UV, ozone and weather-resistant cover
  • Interior smooth, exterior smooth or corrugated


ND
(mm)		 Wall thickness
(mm) 		WP
(bar) 		Vacuum
(bar) 		Bend. radius
approx. (mm)		 Max. length
(m)
100 6 10 - 700 40
100* 7 10 0,5 800 40
125 6 10 - 875 30
125* 7 10 0,5 1000 30
150 7 10 - 1050 30
150* 8 10 0,5 1200 30
200 7 10 - 1400 10
200* 8,5 10 0,5 1600 10
250 7 10 - 1750 10
250* 8,5 10 0,5 2000 10

*) Spiral hose version

Supplied by the roll or cut to length with fittings and/or widened hose endings or built-in flanges.

Other versions and dimensions on request.
