SOLUTIONS

Over more than 70 years of working with elastomers, we have developed special know-how in development and manufacturing in the field of technical hose products.

• Hoses
• Moulded articles
• Expansion joints
• Hose systems
• Rubber-metal bonds
• Special versions

as individual components or as combinations. Here, our experts unleash their creative powers and problem-solving skills.

The main features of these customer-specific versions are top quality and high degrees of innovation and individualisation, directly maximizing the benefits to the customer.

The following pages give some insight into the wide range of technical hose products and possible solutions to problems. Please do not hesitate to contact our technical sales department for more information.

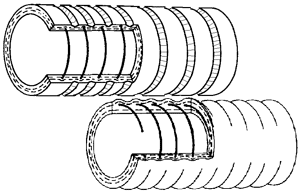

VEHICLE EXHAUST HOSE

Robust version for workshops, test-beds etc. Suitable for hose rollers, drive-over proof, long-term loading up to 160°C, short-term to 190°C.

Anti-kink finish due to plastic spiral with very good bending characteristics.

Construction:

• Black EPDM tube
• Fabric inlays
• Embedded PA-helix
• Black cover
• Interior smooth, exterior rectangular or round and ribbed
• coupling both ends


In fixed lengths with cuffed ends and/or widened hose endings.

Other versions and dimensions on request.

EXPANDABLE HOSE

For canalization work, or for tunnel, mining and spring construction. Pressures up to 60 bar and inflatable > 2 x external diameter. Wall thicknesses on request.

Construction:

• Black, especially elastic tube
• Optional: tension and pressure-resistant special inlays
• Abrasion-resistant, black cover
• Interior smooth, exterior smooth fabric patterned


Sold by the roll or in fixed lengths.

Inflatable hoses are manufactured to customer specifications. Please coordinate the operating conditions with us when enquiring.

Other versions and dimensions on request.

BRIDGE DRAINAGE HOSE

Connection element to drain waste water from bridge structures. Highly flexible version with and without widened endings. Operation as a rule at zero-pressure. Temperature resistant from -35°C to +100°C.

Construction:

• Tube in black, faeces-resistant quality
• Fabric inlays
• Concealed steel spiral
• Abrasion-resistant, weather-resistant cover
• Interior and exterior corrugated


*) Coupling wall

In fixed lengths with cuffed ends and/or widened hose endings.

Other versions and dimensions on request.

DOUBLE-WALLED HOSE

To handle solid, liquid and gaseous media in a temperature range from -40°C to +220°C. The double-walled hose performs far more than a pure protective function in the application involved. It also assumes safety and transport tasks at the same time.

Construction:

• Inner tube matched to the application involved.
  For cross-section stability with integrated steel spiral.
• Outer hose in abrasion-resistant and media-resistant quality.
  The outer hose prevents leaking of the handled medium
  on damage to the inner tube and (when connected
  to an alarm system) warns the operator of the leak.

In fixed lengths.

Only available with special fittings matched to the application involved. Flange connections with DIN, ANSI (ASA) or special bore or as quick-coupling system.

Can be combined with testing and monitoring systems. .

Other versions and dimensions on request.

HEATED HOSE SYSTEMS

Industrial or spiral hoses with an integrated heating system, complete with temperature sensor and controller. This version is extremely robust at a low weight. Especially suitable for outdoor transport tasks with solid and liquid media. Temperature resistant from -40°C to +220°C depending on the application.

Construction:

• Special quality tube
• Heating coil
• Tension and pressure-resistant fabric inlays
• Optional: Concealed steel spiral
• Cover abrasion-resistant, weatherproof
• Interior smooth, exterior smooth fabric patterned or corrugated


In fixed lengths.

Heated hose systems are manufactured to customer specifications. Please coordinate the operating conditions with us when enquiring.

Other versions and dimensions on request.

HEAT PROTECTION HOSE

Special hose for use in steelworks, foundries and other applications with high ambient temperatures. With optional steel spiral very flexible and stable cross-section.

Construction:

• Light or dark-coloured special tube
• Special fabric inlays
• Heatproof glass-fibre surround (to max. 500°C) or
• Heatproof silicate surround (to max. 1200°C)
• Optional: Concealed steel spiral
• Optional: Flame-resistant cover
• Interior smooth, exterior smooth fabric patterned


Supplied by the roll or cut to length.

Other versions and dimensions on request.

MAXIMUM PRESSURE HOSE

Industrial hose for high pressure loads in the liquid and gaseous media fields. Elastomer used based on application or agreement with customer. Fittings vulcanized on at both ends in DIN DIN, ANSI (ASA) or special bore. Temperature resistant from -40°C to +160°C depending on application.

Construction:

• Special quality tube
• Tension and pressure-resistant special fabric inlays
• UV, ozone and weather-resistant cover
• Interior smooth, exterior smooth fabric patterned


Cut to length with flanges or fittings vulcanized on at both ends.

Other versions and dimensions on request.

SLEEVES FOR PINCH VALVE

To shut off and dose liquids, powders or granulates in pinch valves. Working pressures from 2 to 10 bar.
Manufacturer's tests prove excellent service life, very high cycle rates and easy assembly. Temperature resistant from -40°C to +220°C depending on the medium handled.

Construction:

• Tube in special elastomers quality
• Special fabric inlays
• Abrasion-resistant cover
• Interior smooth, exterior polished smooth
• Optional: chamfered faces
• Optional: with connecting fittings


The dimensions are based on the standards of the housing manufacturer. Please coordinate dimensions with us when enquiring or send us a sample.

Other versions and dimensions on request.

PERISTALTIC PUMP HOSE

For use in peristaltic pumps to transport aggressive media, abrasive materials, highly viscous liquids and foodstuffs in practically all industrial fields.

Construction:

• Tube in light or dark special qualities

  for abrasive media, liquids to max. 80°C (NR)
  for drinking water (IIR)
  for oils, petrol, fuels to max. 80°C (NBR)
  for aggressive media to max. 120°C (CSM)
  for chemical media (EPDM)


  FDA-approved food quality


• Special fabric inlays
• Interior smooth, exterior smooth polished


SIMON - peristaltic pump hoses are manufactured with special fabric inlays developed specifically for the application. This guarantees harmonious flexing with permanently stable cross-sections.

With the dynamically adjusted elastomers mixtures the result is lower overpressing with perfect tightness and low working temperatures This achieves exceptionally long service life.

These hoses are polished with abrasive tools in special alloys. This method guarantees an homogenous surface microstructure of the peristaltic pump hose without affecting the elastomer's quality.

Other versions and dimensions on request.

CONNECTING ELEMENTS

Preformed connecting element to handle gasses, liquids with solid content, or highly abrasive solids in the suction and pressure field.
Outstanding as a substitute for steel arches or steel funnels with longer service lives. Temperature resistant from -40°C to +260°C depending on the application.

Construction:

• Special quality tube depending on the medium
• Tension and pressure-resistant fabric inlays
• UV, ozone and weather-resistant cover
• Interior smooth, exterior smooth fabric patterned
• optional: embeddes steel rings or steel spiral
• optional: heat protection cover
• optional: antistatic version
• optional: wall reinforcement at bends


In fixed lengths.

The tooling to produce connecting elements is produced in our tooling shop according to customer drawings.

Other versions and dimensions on request.

ROLLER COVERINGS

We produce roller coverings for customer finishing or offer all services from first-time gumming or re-gumming.

1. Roller cover hoses: Various qualities with fabric inlays and/or structured surfaces.

2. Roller gumming: New manufacturing with roller core and re-gumming, gumming of roller cores provided by the customer (re-gumming), polishing of gummed rollers.

Construction:

• Gumming in all qualities
• Black and dyed gum qualities
• BGVV and FDA - food quality


Other versions and dimensions on request.
