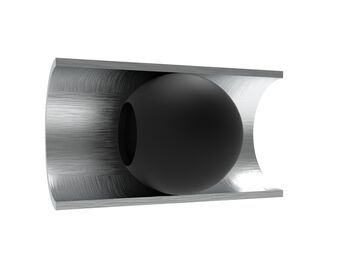

SIMON® Expandable hose
For canalization work, or for tunnel, mining and spring construction. Pressures up to 60 bar and inflatable > 2 x external diameter. Wall thicknesses on request.
Construction:
- Black, especially elastic tube
- Optional: tension and pressure-resistant special inlays
- Abrasion-resistant, black cover
- Interior and exterior smooth, fabric patterned
| ND (mm) | Working pressure (bar) | Max. length (m) |
|---|---|---|
| 13 to 20 | 1 to 60 | 20 |
| 22 to 25 | 1 to 60 | 20 |
| 38 | 1 to 40 | 20 |
| 45 | 1 to 40 | 20 |
| 55 | 1 to 10 | 15 |
| 70 | 1 to 5 | 15 |
| 80 | 1 to 5 | 15 |
| 100 | 1 to 5 | 15 |
| 125 | 1 to 5 | 10 |
| 150 | 1 to 5 | 10 |
| 200 to 750 | 1 to 3 | 10 |
Sold by the roll or in fixed lengths.
Inflatable hoses are manufactured to customer specifications. Please coordinate the operating conditions with us when enquiring.
Other versions and dimensions on request.
