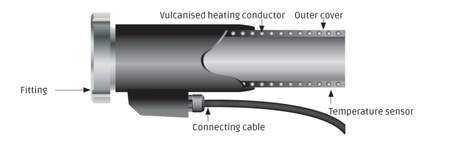

Heating hose with vulcanized heating conductor

The HL foodstuffs hose stands out by virtue of its innovative construction. The heating element is spiral wound on the NBR hose core and thus lies vulcanized in the inner hose material. This hose does no longer differs visibly or in its usage from an unheated hose, thus handling is simplified considerably. A temperature sensor is also integrated into the hose which measures temperature directly in the hose wall. Suitable for transporting fatty and non-fatty foodstuff, as well as passing alcoholic and non-alcoholic beverages.

Construction:

• Light colored NBR-tube
• Tension and pressure-resistant fabric inlays
• other color on customer request

• blue abrasion-resistant and weather-resistant cover
• interior and exterior smooth, exterior fabric patterned
• for the promotion of food
• food grade according to BfR XXI Cat. 2 and/or FDA CFR § 177.2600, as well as Regulation (EC) No. 1935/2004

Fitting:

• bubble-free vulcanised and heated stainless steel fitting 1.4301, milk pipe screw connector / RD

Optional Fitting:

• conical hose connector, grove nut, threaded hose connector, flange (aseptic), clamp connector

Connecting cable:

• 1,5 m

Temperature sensor:

• integrated heating element with PT100 sensor

Rated voltage:

• 230 V AC/DC (other voltages up to 500 V)

Rated power:

• see table below

Manufacturing length:

• up to 40 m

Opterating temperature:

• 40°C and 80°C

Protection type:

• up to IP 44 (EN 60529), Protection class I

Suction and pressure hoses with steel spiral are also available on request. For higher temperatures, hoses can be made of fluoropolymer (Viton). A range of controllers is available for temperature control. The program ranges from the integrated mini-controller with fixed temperature setting to the microprocessor-controlled comfort device.
