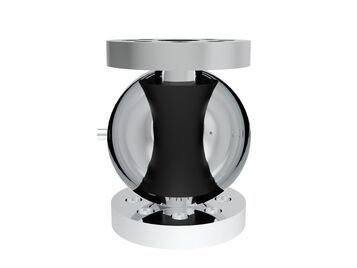

SIMON® Sleeve for pinch valve
To shut off and dose liquids, powders or granulates in pinch valves. Working pressures from 2 to 10 bar.
Manufacturer’s tests prove excellent service life, very high cycle rates and easy assembly. Temperature resistant from –40°C to 220°C depending on the medium handled.
Construction:
- Tube in special elastomers quality
- Special fabric inlays
- Abrasion-resistant cover
- Interior smooth, exterior polished smooth
- Optional: chamfered faces
- Optional: with connecting fittings
| ND (mm) | Wall thickness (mm) | Length (mm) |
|---|---|---|
| 40 | 7,5 | 151 |
| 50 | 8 | 157 |
| 65 | 9,5 | 188 |
| 80 | 12 | 230 |
| 100 | 13 | 274 |
| 125 | 15 | 334 |
| 150 | 17,5 | 395 |
| 200 | 20,5 | 526 |
| 250 | 22,5 | 596 |
The dimensions are based on the standards of the housing manufacturer. Please coordinate dimensions with us when enquiring or send us a sample.
Other versions and dimensions on request.
